megadesertdiesel
Well-Known Member

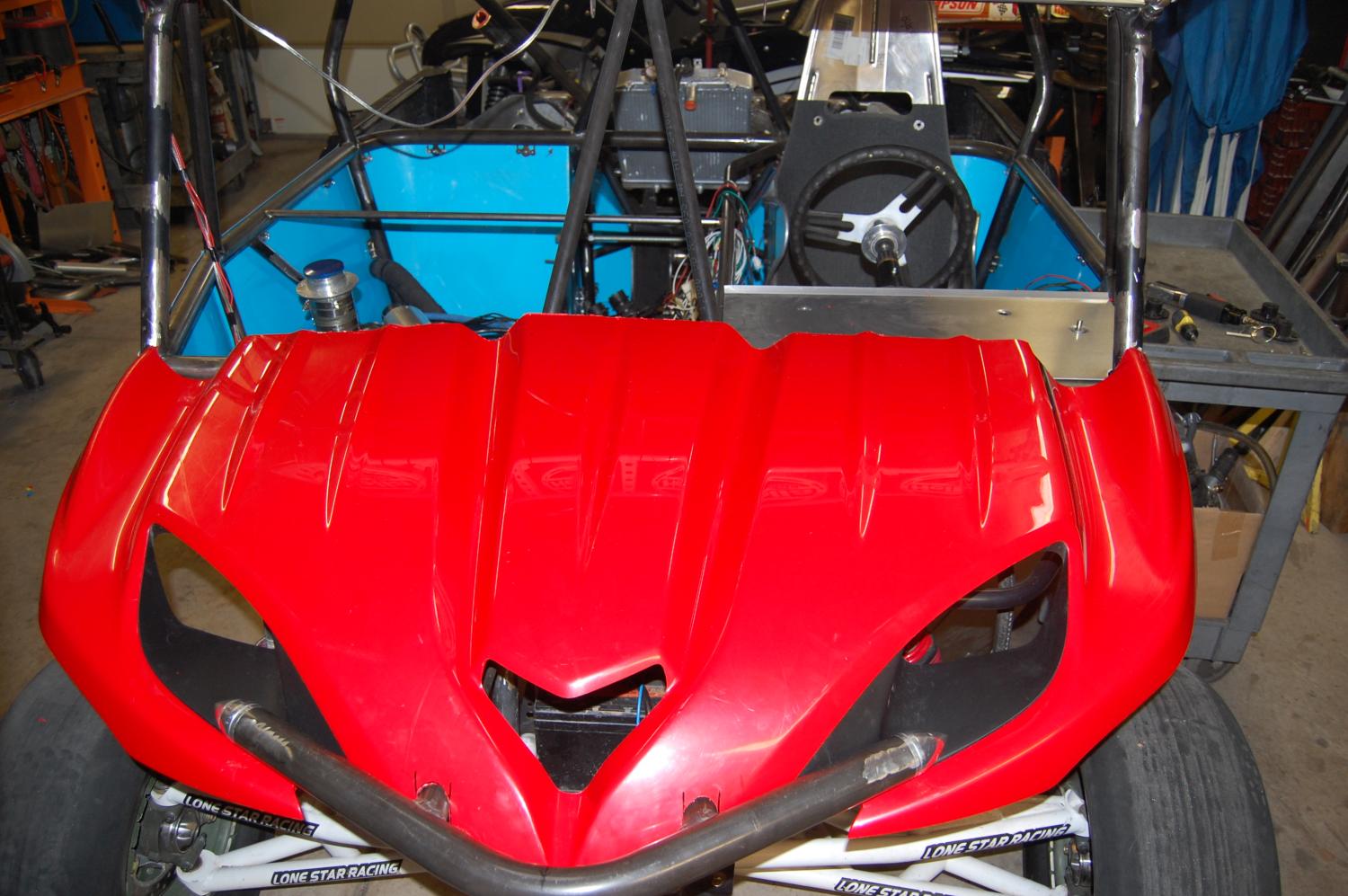

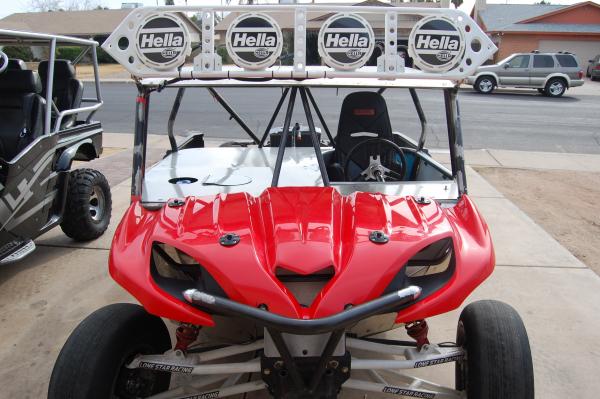

trimmed up the new hood a little tonight. still needs the mounts installed and some fine filing and sanding to finsih it off.
my RZR1 build
- Thread starter megadesertdiesel
- Start date
megadesertdiesel
Well-Known Member
I like the red 4 sure
any word on getting your motor rebuilt (timeframe)?
i am thinking two weeks to rebuild. BUT i have to give Weller some cash first and i will not have $1900 for a couple few weeks.
megadesertdiesel
Well-Known Member

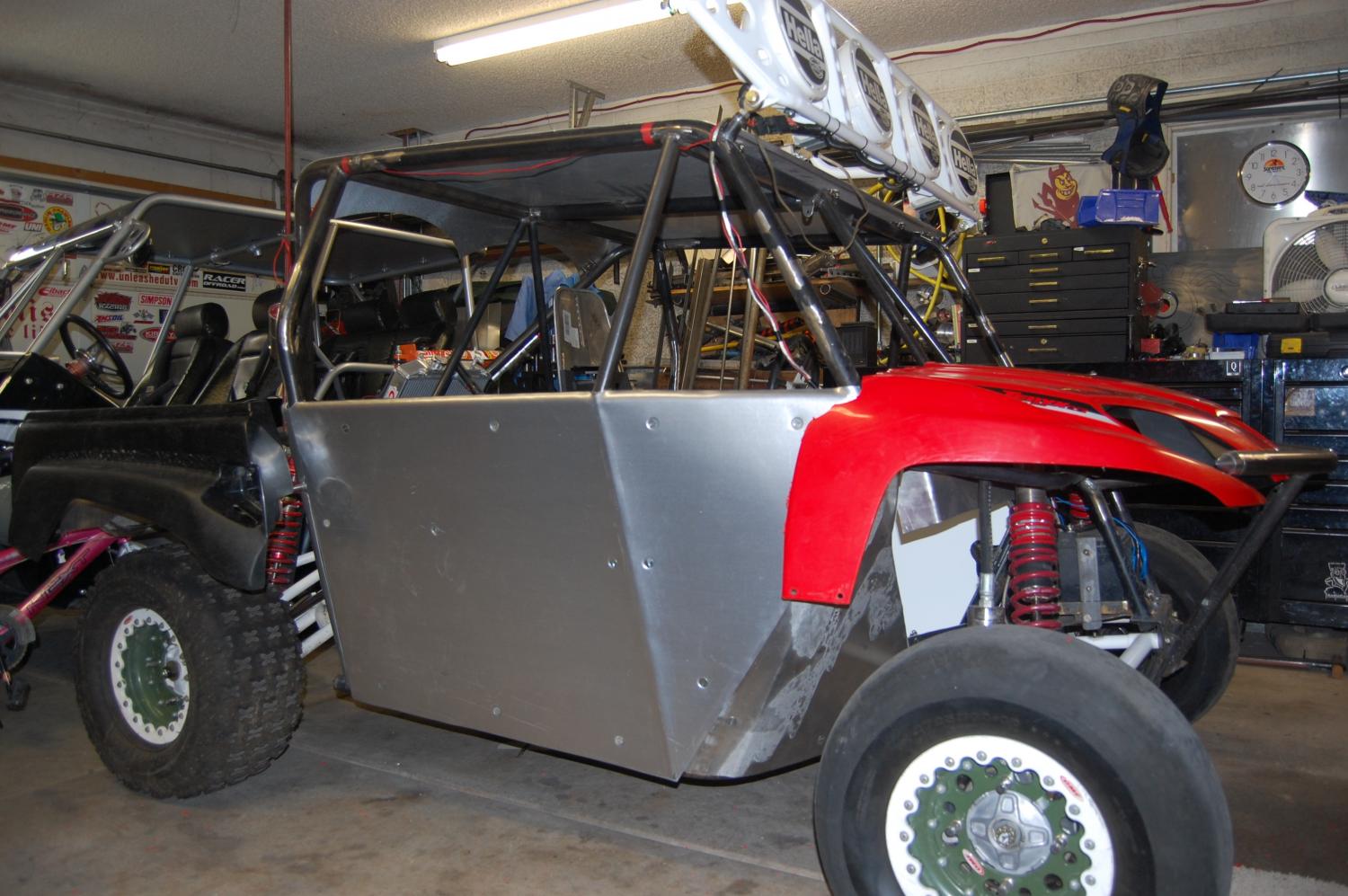

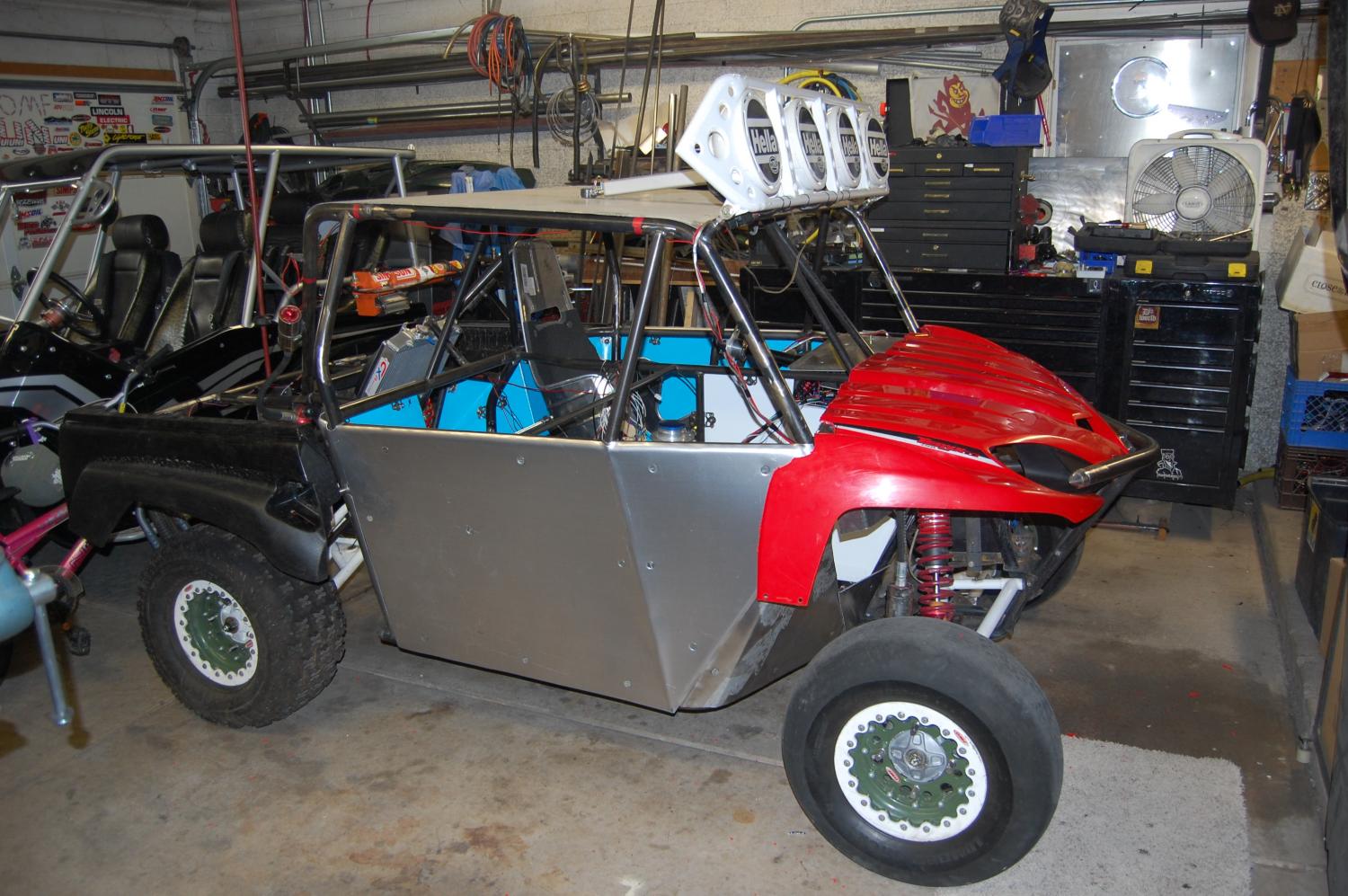

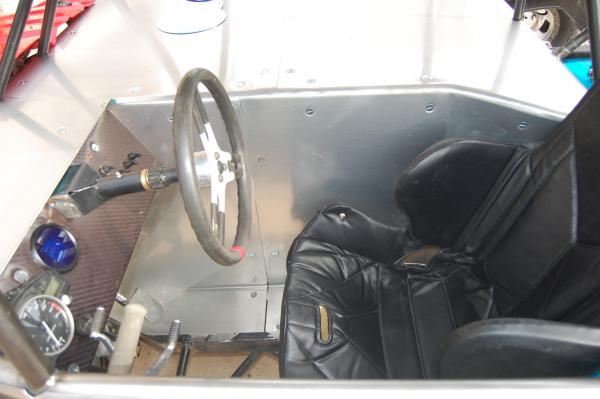

made a few panels this weekend then ran out of aluminum. still need to make the bed cover, cooler rack and bead roll the panels. then i have to decide what colors.
badinfluencerace
The Future Of SXS Racing is being Built in my Driv
loookng good mike
megadesertdiesel
Well-Known Member

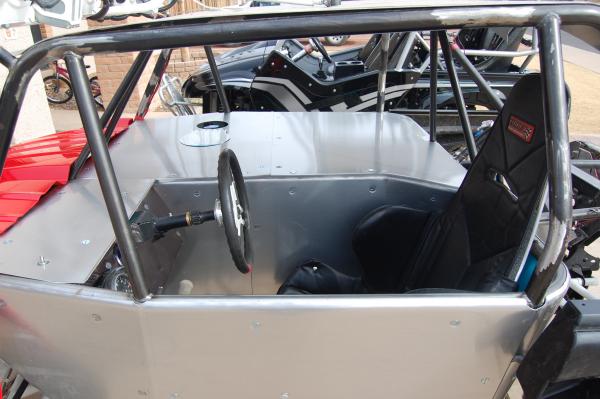

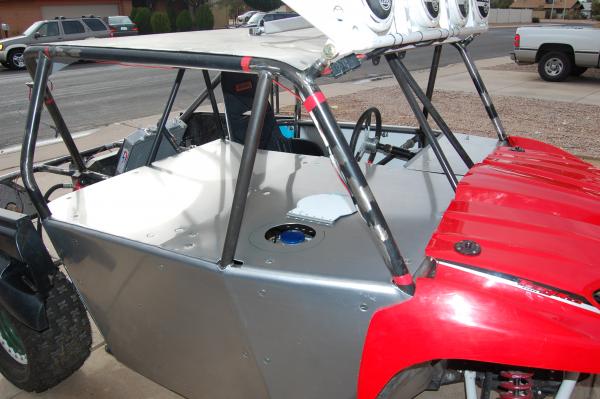

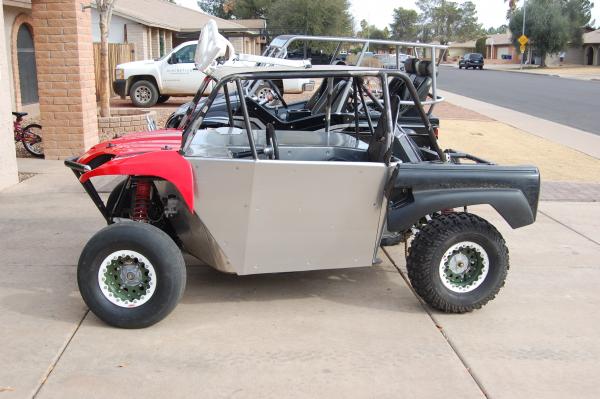

made 3 panels today. two bed tops and a half roof so i can see up hill while dunning. need to bead roll all of the panels next.
megadesertdiesel
Well-Known Member

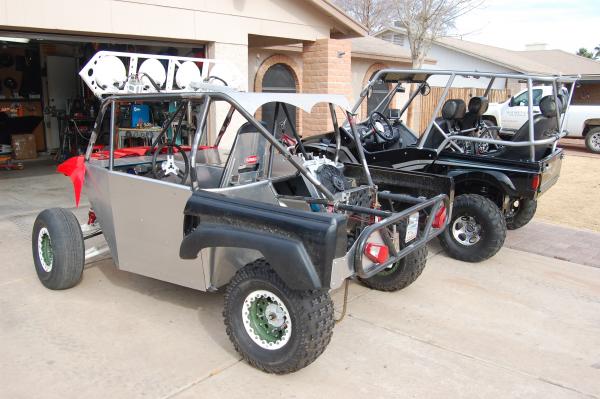

a little progress this weekend. mounted the bottom of the rear bumper to the frame. next is to make a cooler holder for frosty beverages.
megadesertdiesel
Well-Known Member
Presidents Day at Glamis is the new goal. i am getting close to having all the money to buy another motor. got any leads on an 04-06 motor?
megadesertdiesel
Well-Known Member
a little more progress
i used two Rhino bed shocks as stabilizers for my lightbar actuator. they have play in them and while driving through rough terrain the lightbar will jiggle agound and the lights will vibrate.
also made a drivers side mirror holder.
then finished up my rear trunk to hold my cooler for frosty beverages.
i used two Rhino bed shocks as stabilizers for my lightbar actuator. they have play in them and while driving through rough terrain the lightbar will jiggle agound and the lights will vibrate.
also made a drivers side mirror holder.
then finished up my rear trunk to hold my cooler for frosty beverages.
andyallday
New Member
This thing is crazy. Where you planning on camping for presidents weekend? Id like to check this monster out. Aluminum work looks great!
Quad Cartel
New Member
Mike I took my rims to OMF. For $100 a wheel the put the billet centers in.
They machined the wheel.
Then they put in the new Type R inserts.
They machined the wheel.
Then they put in the new Type R inserts.
megadesertdiesel
Well-Known Member
yes President day at Glamis should be camping at wash 4.5 from thursday evening to monday afternoon.
just got a parts motor friday night and put it together and installed it. now i have to ziptie the wiring and install the radiator. then i should be able to fire it up today. going to skip out of work this morning to finish it up. too excited to work all day today.
just got a parts motor friday night and put it together and installed it. now i have to ziptie the wiring and install the radiator. then i should be able to fire it up today. going to skip out of work this morning to finish it up. too excited to work all day today.
megadesertdiesel
Well-Known Member
i finally got another used motor in 3 different ubs and had to assemble it. cylinders were ok but need new rings and a hone job, i will do this later just want to drive this mofo.
installed the motor and hooked up all of the wiring. and attempted to fire it up. had an issue getting fuel, so i took the injectors to a shop to have them checked out. all of the injectors were fine so i decided to check how much fuel i had in my fuel cell. well it was almost empty and i am a dumbass for not checking.
so now i turn on fuel pump and let it run for a minute then crank it over. VROOOOOOOMMM!!!!!!!!!! she fired up and sounds smooth. effin amazing since it was my first ever motor i had completely apart and put back together myself.
had to fix a small fuel leak at one of the injectors. it was just an oring that needed to be replaced. also a small oil leak at the cover for the end of the crank, but the little bolt is behind a motor mount and i will need to remove it to tighten. i will do this later.
now that it ran i had to cut a hole in the motor cover for the airfilter and cut a hole for the 2" exhaust through the passenger side rear panel. got them trimmed and cleanned up then re-installed.
so excited i took it for a drive around the block. the clutch slipped badly and i had to go back to the garage and adjust it. crawled under the car and adjusted the clutch then back on the road.
damn thing is scary fast and you really notice how lumpy the dirt tires are while going 70mph on pavement.
proceeded to drive about 7 miles around the streets of Mesa then back to the garage with a huge smile on my face. it really has been a long time comming. i started this swap in late September.
dont worry i will post some video and pics tomorrow morning of a little road trip in the "only street legal RZR powered by a R1". haha stupid line but true.
thanks for all of the help and support everyone has given me through this swap. i already have a short list of things to change and a couple upgrades. plus making it look good with some beadrolling of the panels and some powdercoating.
BUT I AM GOING TO ENJOY IT AND MAKE IT PRETTY LATER!!!!!!! rough tough and dangerous is how i roll.
installed the motor and hooked up all of the wiring. and attempted to fire it up. had an issue getting fuel, so i took the injectors to a shop to have them checked out. all of the injectors were fine so i decided to check how much fuel i had in my fuel cell. well it was almost empty and i am a dumbass for not checking.
so now i turn on fuel pump and let it run for a minute then crank it over. VROOOOOOOMMM!!!!!!!!!! she fired up and sounds smooth. effin amazing since it was my first ever motor i had completely apart and put back together myself.
had to fix a small fuel leak at one of the injectors. it was just an oring that needed to be replaced. also a small oil leak at the cover for the end of the crank, but the little bolt is behind a motor mount and i will need to remove it to tighten. i will do this later.
now that it ran i had to cut a hole in the motor cover for the airfilter and cut a hole for the 2" exhaust through the passenger side rear panel. got them trimmed and cleanned up then re-installed.
so excited i took it for a drive around the block. the clutch slipped badly and i had to go back to the garage and adjust it. crawled under the car and adjusted the clutch then back on the road.
damn thing is scary fast and you really notice how lumpy the dirt tires are while going 70mph on pavement.
proceeded to drive about 7 miles around the streets of Mesa then back to the garage with a huge smile on my face. it really has been a long time comming. i started this swap in late September.
dont worry i will post some video and pics tomorrow morning of a little road trip in the "only street legal RZR powered by a R1". haha stupid line but true.
thanks for all of the help and support everyone has given me through this swap. i already have a short list of things to change and a couple upgrades. plus making it look good with some beadrolling of the panels and some powdercoating.
BUT I AM GOING TO ENJOY IT AND MAKE IT PRETTY LATER!!!!!!! rough tough and dangerous is how i roll.
