Yamaha how to wire lights
- Thread starter kdub41
- Start date
MAGNUM OFFROAD
Official UTVUnderground Sponsor & Founder
Bring the Rep!!!
JoeyD23
#utvunderground

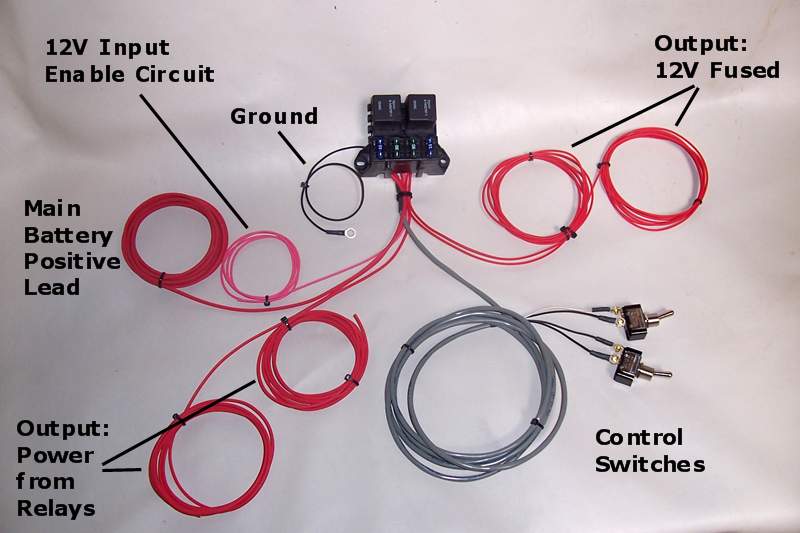

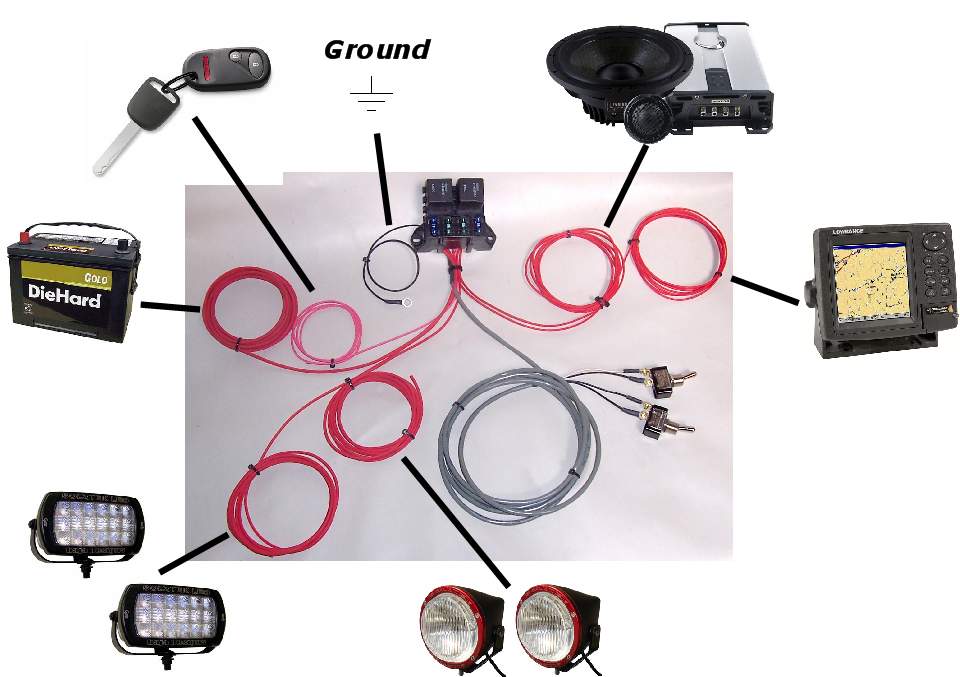

Looks similar, but the Autotrend setup comes with the switches & relays already wired up to control two sets of lights.
Painless typically just gives you switched & unswitched fuses.
Headlights, fans and other high draw accessories should go through a relay.
I would eventually like to wire up four lights on a light bar I have. I definitely see the benefits of the Autotrend fuse block, but the part I'm still fuzzy on is how to connect the wires from the lights to the two switches. I think I want the two outside lights on one switch and the two inside lights on the other swith and I don't know how to make that happen.
dezerteryx
Active Member
you would then wire two lights to each switch using the relay switch power out put wires.
If you need help email me and I will draw you a diagram hounslowracing@gmail.com
Sent from my Droid using Tapatalk
Sent from my Droid using Tapatalk
RhinoMaster
Official UTVUnderground Sponsor - Black Rhino Perf
Here's the Painless setup we sell.
Yamaha Rhino Electrical Parts - Weather Resistant Fuse Block W/Relay - 217 Fuse Block 7 Ignition Circuits - Black Rhino Performance
$99.15 gets you the 7 circuit version. 4 switched circuits, running through a heavy duty relay, and 3 constant hot circuits. Each circuit is capable of delivering 20 amps, WAY more than you could ever use in a UTV. $78.51 gets you a 3 circuit version with 2 switched and 1 hot circuit.
We've also just come out with a new version that we're building in-house. For $24.95 you get two circuits, one switched through a heavy-duty relay, and one constant hot.
Just some other alternatives...
Yamaha Rhino Electrical Parts - Weather Resistant Fuse Block W/Relay - 217 Fuse Block 7 Ignition Circuits - Black Rhino Performance
$99.15 gets you the 7 circuit version. 4 switched circuits, running through a heavy duty relay, and 3 constant hot circuits. Each circuit is capable of delivering 20 amps, WAY more than you could ever use in a UTV. $78.51 gets you a 3 circuit version with 2 switched and 1 hot circuit.
We've also just come out with a new version that we're building in-house. For $24.95 you get two circuits, one switched through a heavy-duty relay, and one constant hot.
Just some other alternatives...
RhinoMaster
Official UTVUnderground Sponsor - Black Rhino Perf
Just spent the whole weekend wiring cars, getting them ready for season, or long trips through Utah. It's amazing how many really terrible wiring jobs there are out there. Especially the ones we get in that are done by 'professionals' of some type.
What I can say is that it is well worth the time and expense to lay a proper foundation when wiring. Start off with a good quality power distribution product that supplies power directly from a battery through a heavy duty relay, and provides fused protection. An Autotrend, Painless, Black Rhino, all give you a good professional start. I also suggest adding a ground block, they're cheap, easy, and can avoid a LOT of problems. We often see wierd electical problems that end up being caused by poor ground. They are often the most difficult to diagnose.
Putting all of your electrical connection through a fuse block and grounding block also gives you an added benefit, if you mount them in close proximity. All of your connections are localized into one area so if anything DOES go wrong, they're all in one place.
Also.... remember to write down what you did. What fuse position covers what accessories. What wire color(s) did you use. Make notes and keep them with your owners manual or maintenance records. It could save you LOTS of time, frustration, and mistakes. And whenever you have electrical work done, be sure to give a copy to your service rep and show them where everything is. It might, just maybe, also save you a few $$ down the road when a service center is installing something new, and all the connections they need are already there, all laid out and easy!
What I can say is that it is well worth the time and expense to lay a proper foundation when wiring. Start off with a good quality power distribution product that supplies power directly from a battery through a heavy duty relay, and provides fused protection. An Autotrend, Painless, Black Rhino, all give you a good professional start. I also suggest adding a ground block, they're cheap, easy, and can avoid a LOT of problems. We often see wierd electical problems that end up being caused by poor ground. They are often the most difficult to diagnose.
Putting all of your electrical connection through a fuse block and grounding block also gives you an added benefit, if you mount them in close proximity. All of your connections are localized into one area so if anything DOES go wrong, they're all in one place.
Also.... remember to write down what you did. What fuse position covers what accessories. What wire color(s) did you use. Make notes and keep them with your owners manual or maintenance records. It could save you LOTS of time, frustration, and mistakes. And whenever you have electrical work done, be sure to give a copy to your service rep and show them where everything is. It might, just maybe, also save you a few $$ down the road when a service center is installing something new, and all the connections they need are already there, all laid out and easy!
Rhinofire13
New Member
Thank you for the photos
