UTVUnderground 2014 Can-Am Maverick Max BUILD Thread

[JoeyD23]

Yes, I said Build Thread! It's been a while since I have done one of these so I will do my best not to let you guys down and keep it up to date as best I can.

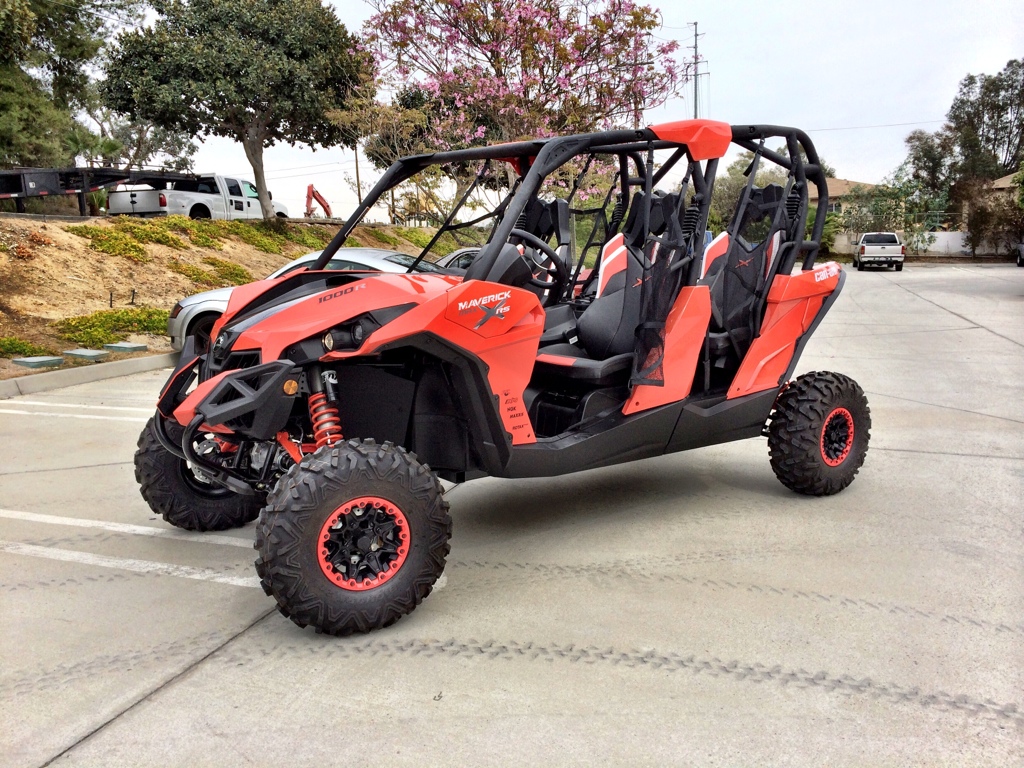

We are starting with a brand new, 0 mile 2014 Maverick Max 1000 XRS with EPS.

The goal is to go back to our roots with a bad ass So-Cal style desert play car!

First decision to make was builder and we settled on one of the hottest names here in Southern California, Madigan Motorsports. Tom Madigan has been building some sweet off road vehicles for a long time and recently has been building a ton of cool UTVs both for race and play. His latest Maverick builds are what drew me to choosing him to do our build.

Madigan has already torn the car down and is now starting with his full boxed suspension kit. I will post all the specs soon.

I'll keep posting updates.....



[JoeyD23]

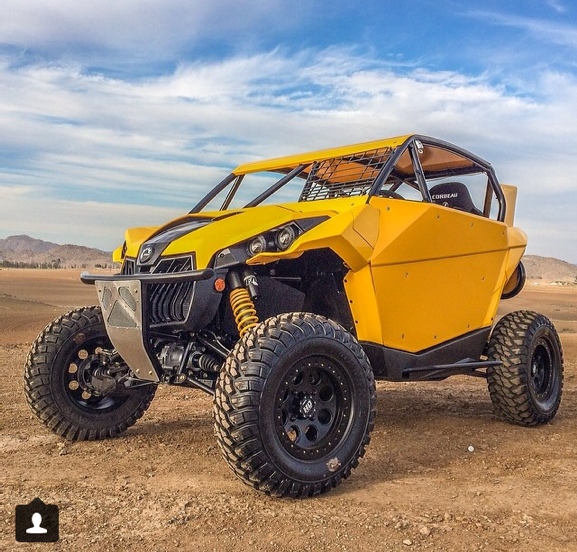

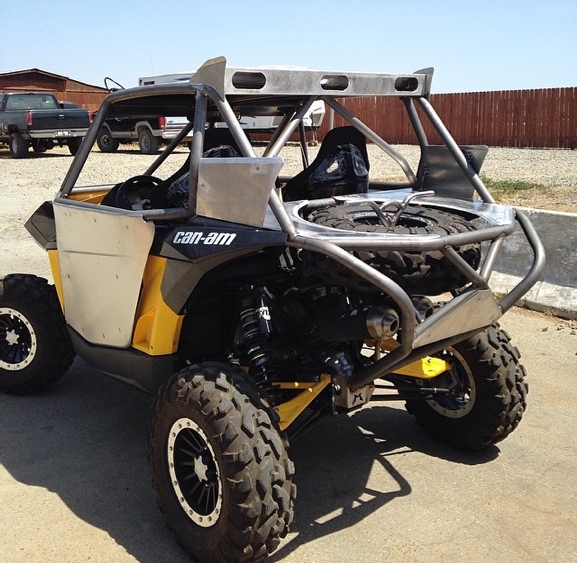

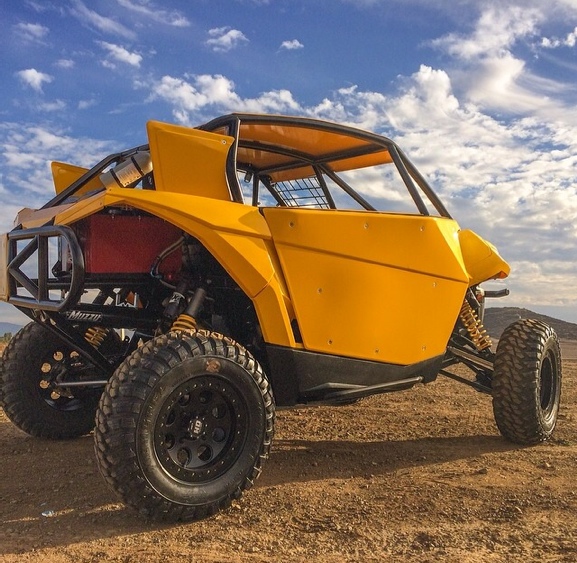

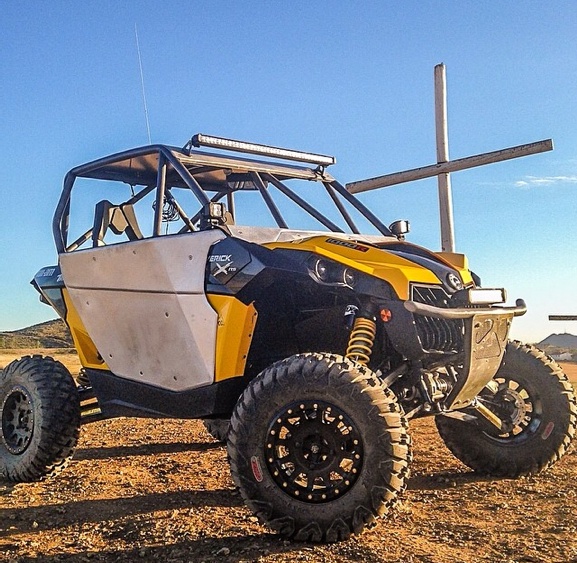

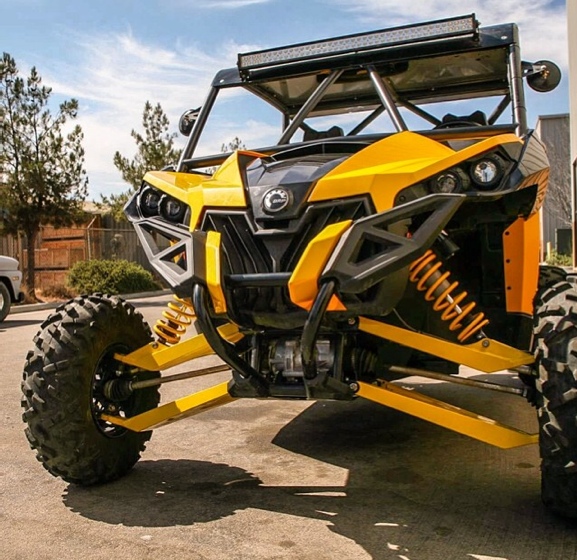

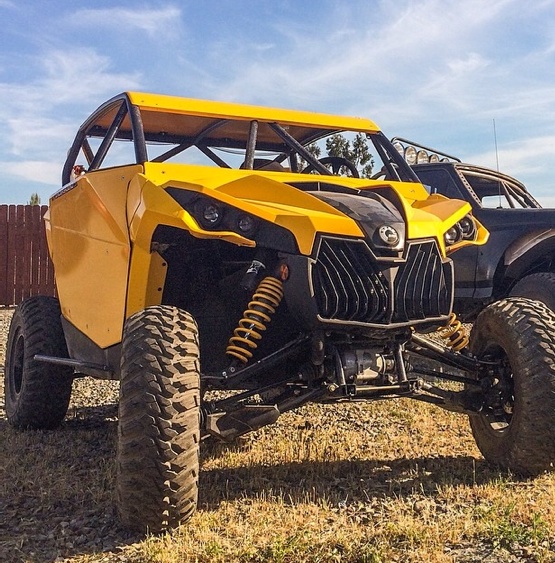

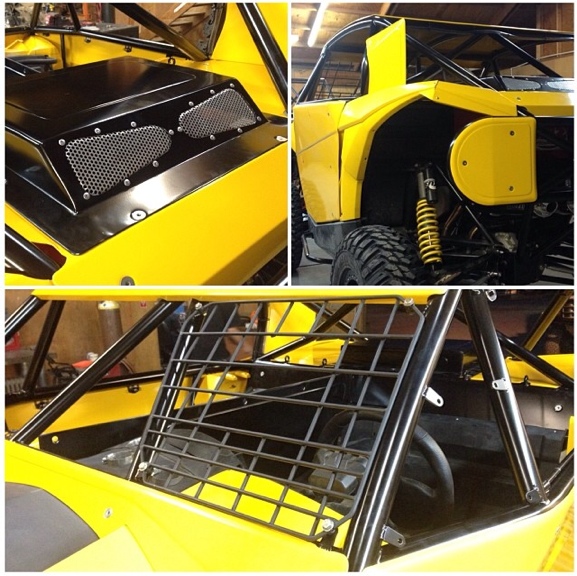

Some of Madigan's other Can-Am work



[JoeyD23]

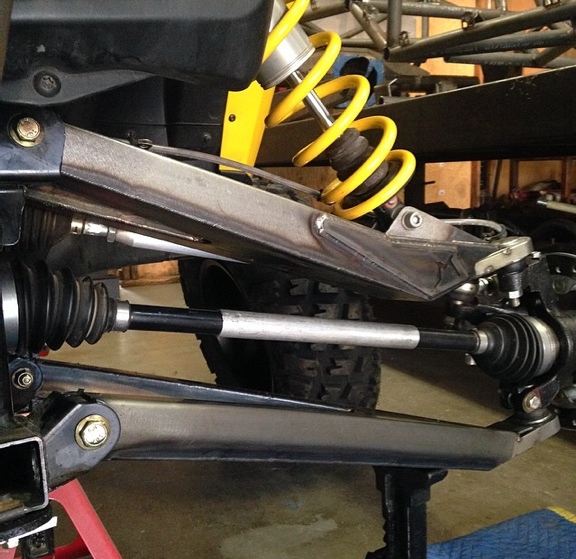

Suspension specs:

+3 per side
4130 Tig welded
Gives you three more inches of wheel travel over stock
Summers Bros axles
Madigan Front Tie rods
Madigan Rear radius rods
Fk rear uniballs
And utilizes stock shock location

We plan to upgrade our factory Fox Podium shocks to new Fox IBP 2.5" shocks once they are ready!



[dlak]

subscribed!



[AReed]

Fox has always said there wasn't enough body on the Maverick shocks to do a BOC and that the rear gold series XXC shocks are the only ones that can fit it.
When are they suppose to release this shock?



[desertdog615]

Hey Joey,
Any idea what your going to do with the factory plastic fender flares?



[JoeyD23]

Fox has always said there wasn't enough body on the Maverick shocks to do a BOC and that the rear gold series XXC shocks are the only ones that can fit it.
When are they suppose to release this shock?

Not sure. Hopefully soon. I'll try to get specs from them. My last Maverick had 2.5" Walker Evans Racing shocks and they were awesome!



[JoeyD23]

Hey Joey,
Any idea what your going to do with the factory plastic fender flares?

I would like to take them off along with all the other black trim pieces and have them carbon fiber dipped. I want to go with a red Ferrari theme I think.



[megadesertdiesel]

I would like to take them off along with all the other black trim pieces and have them carbon fiber dipped. I want to go with a red Ferrari theme I think.

like the old Ferrari rhino? man i loved that car.


BTW i love this build. LT, big shocks, perfect wheelbase and sweet cage design. total win, just let me know if you need a test driver.



[PCI Race Radios]

Can't wait to see this build progress! (I'm not up to date with the "Build" threads and not sure if that term is allowed or not...)

-Alon



[AReed]

Not sure. Hopefully soon. I'll try to get specs from them. My last Maverick had 2.5" Walker Evans Racing shocks and they were awesome!

If they end up falling through get with me. I did the shocks on the JBR Maverick, we have a Max setup and it does great.



[JoeyD23]

Wheels!!!!

We will be running a set of 15" Method Race Wheels (beadlocks of course)

http://www.methodracewheels.com/collections/utv-wheels/products/beadlock-black-utv



[JoeyD23]

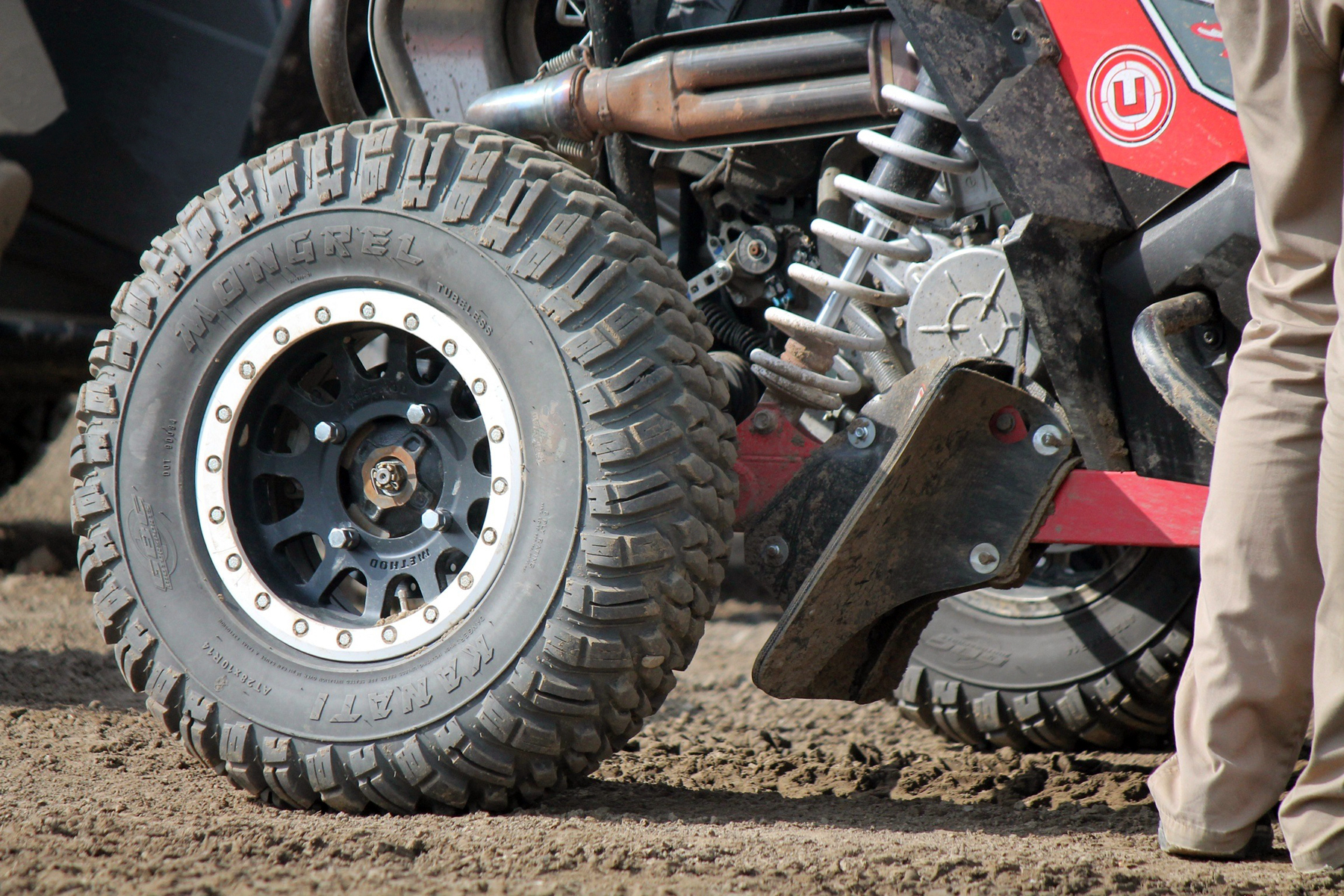

Tires!!

We are running a set of 30" GBC Kanati Mongrels!!

http://www.gbcmotorsports.com/kanati-mongrel-p-216.html



[JoeyD23]

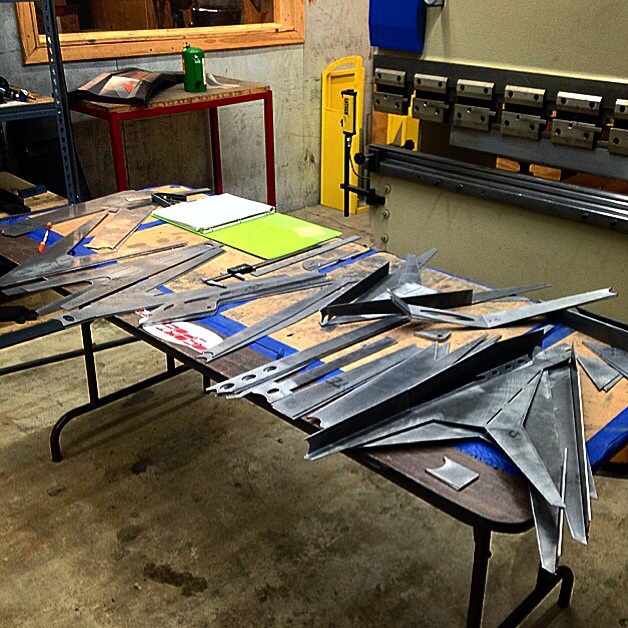

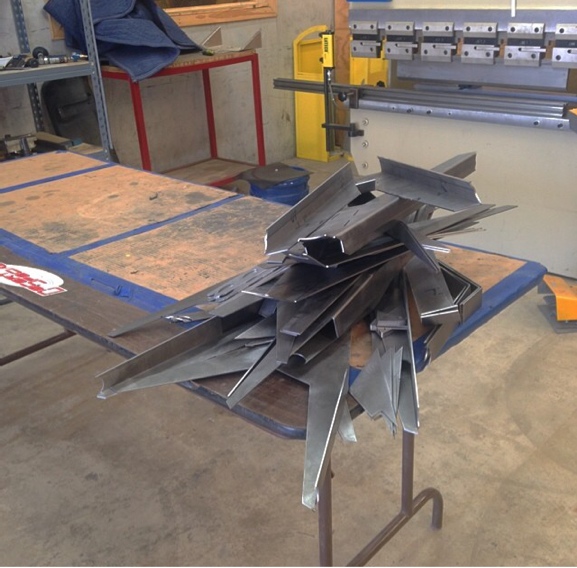

Ready for some dime stacking...



[JoeyD23]

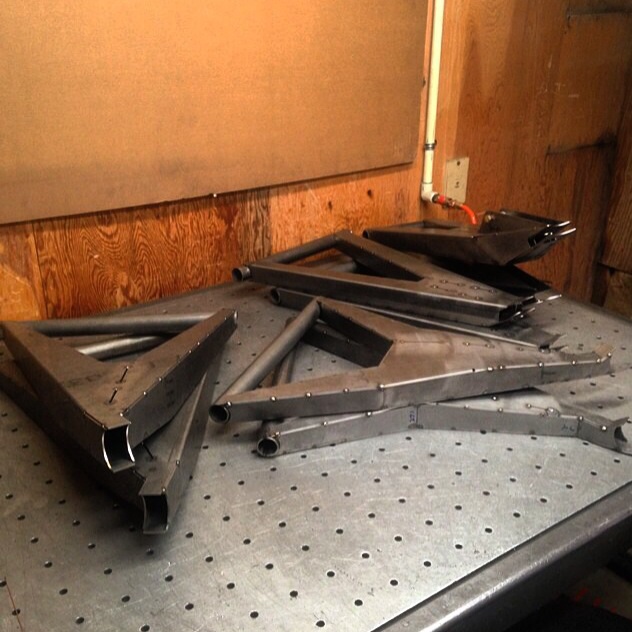

Progress.... Tacked and ready to burn



[Kalop]

Sub'd I like it so far !!! Should be interesting how it turns out.



[Ali Baba]

Subscribed!



[JoeyD23]

Vision-X is on board for lighting... we plan to get creative with our lighting selection!



[Tzenev]

I really can't wait to see this thing come together!


Sent from my iPhone using Tapatalk



[Tzenev]

Any updates on this build??


Sent from my iPhone using Tapatalk
